Our Work
In Action

LilyJacks Solutions specializes in professional voice, data, fiber optic, and CCTV installations for a wide range of commercial and residential clients. This gallery highlights some of our completed projects, showcasing our precision in structured cabling, rack builds, network optimization, and surveillance system integration.

Whether upgrading infrastructure for schools, building out telecom rooms for auto dealerships, or running new lines for healthcare facilities, our work reflects reliability, cleanliness, and technical excellence in every detail.

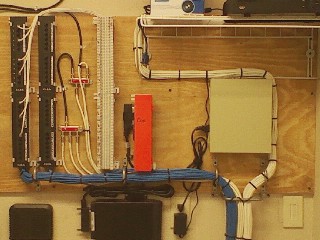

American Med Project

For this healthcare facility, LilyJacks Solutions delivered a clean and highly organized low-voltage infrastructure upgrade. The project included:

  • Structured Cat6 data cabling, neatly bundled and anchored for maximum airflow and serviceability

  • Installation of a network rack system with mounted patch panels, surge protection, and labeled connections

  • Integration of fiber-ready conduit and telecom enclosures, preparing the site for future bandwidth upgrades

  • Mounted equipment including modem, router, power distribution, and VoIP-ready hardware

  • Fully code-compliant, professional layout—optimized for both performance and aesthetics

This buildout is a great example of our commitment to clean installs, future-proof wiring, and healthcare-grade reliability.

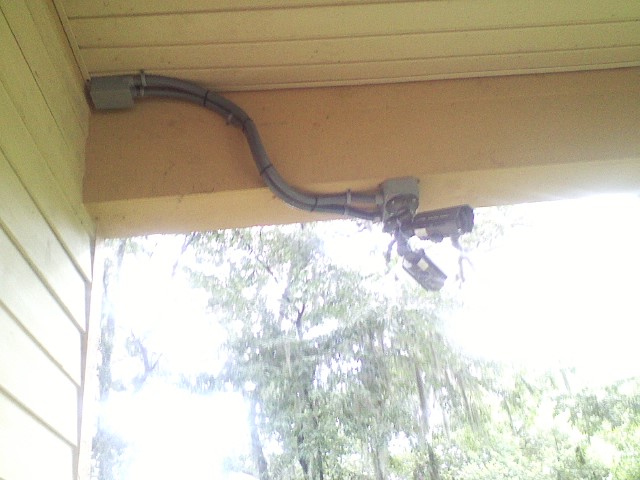

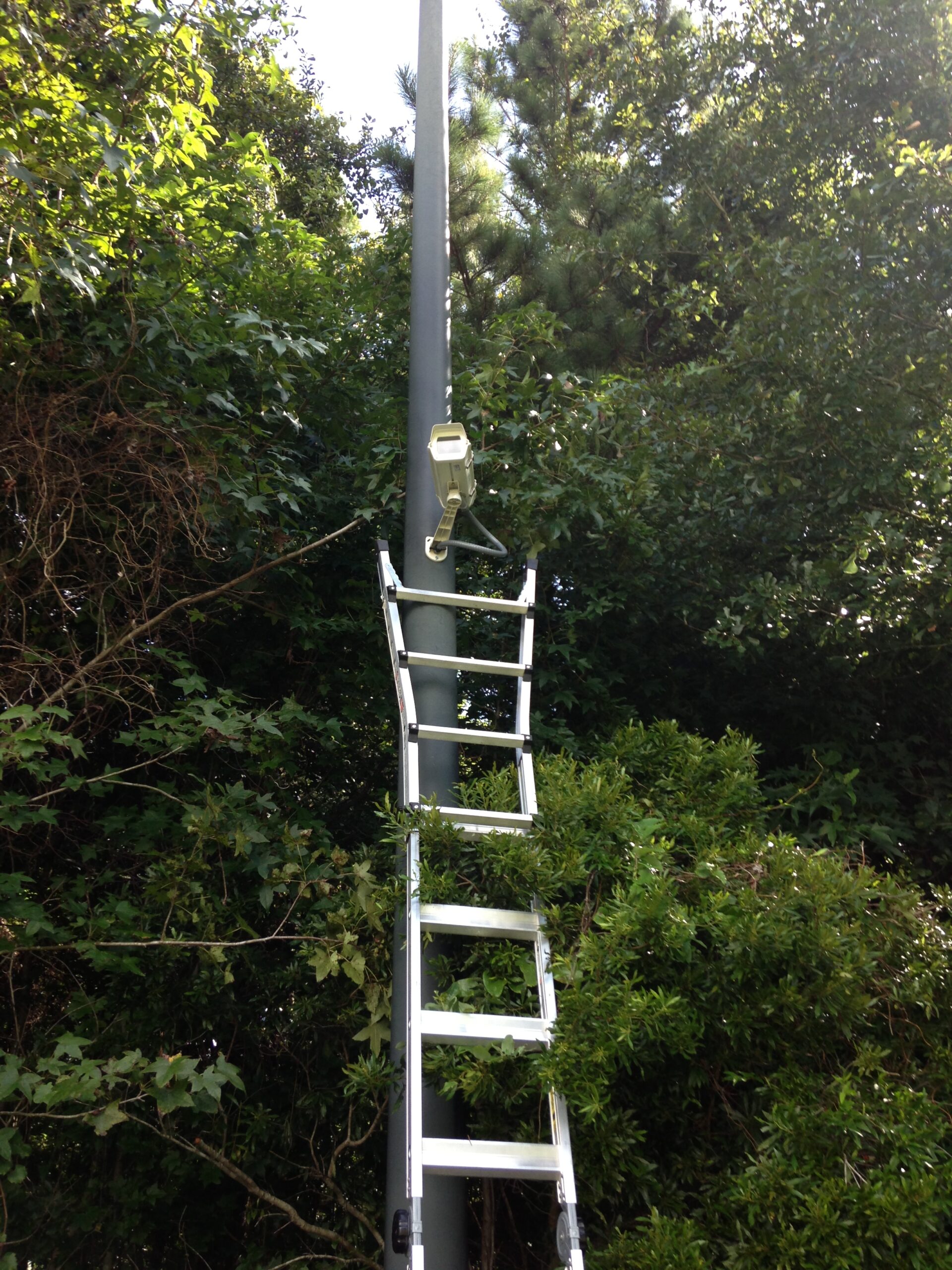

CCTV Security Camera Project

LilyJacks Solutions provided Arbor House with a secure, discreet surveillance and infrastructure solution tailored to their facility’s layout. The project included:

  • Interior equipment rack installation featuring mounted low-voltage components, power distribution, and neat cable routing within a compact space

  • Weatherproof outdoor camera system using armored conduit for protection and long-term durability

  • High-angle surveillance coverage positioned for maximum visibility over entry points and walkways

  • Clean conduit bends and a professional finish ensure long-term maintainability and performance

This project is a great showcase of LilyJacks Solutions’s ability to deliver reliable security systems and infrastructure in both residential and care-focused settings.

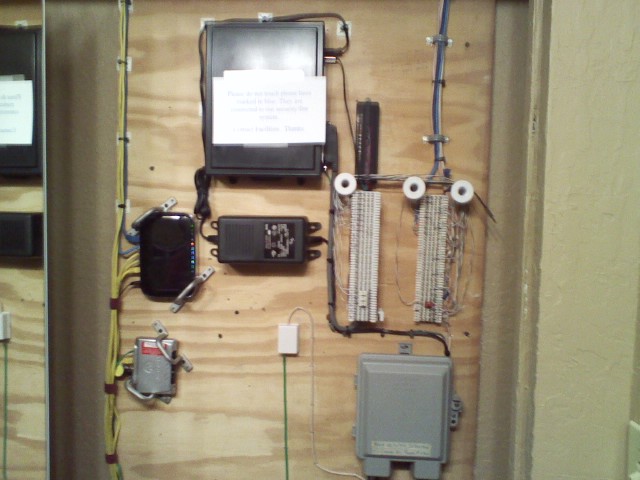

Bellview Church

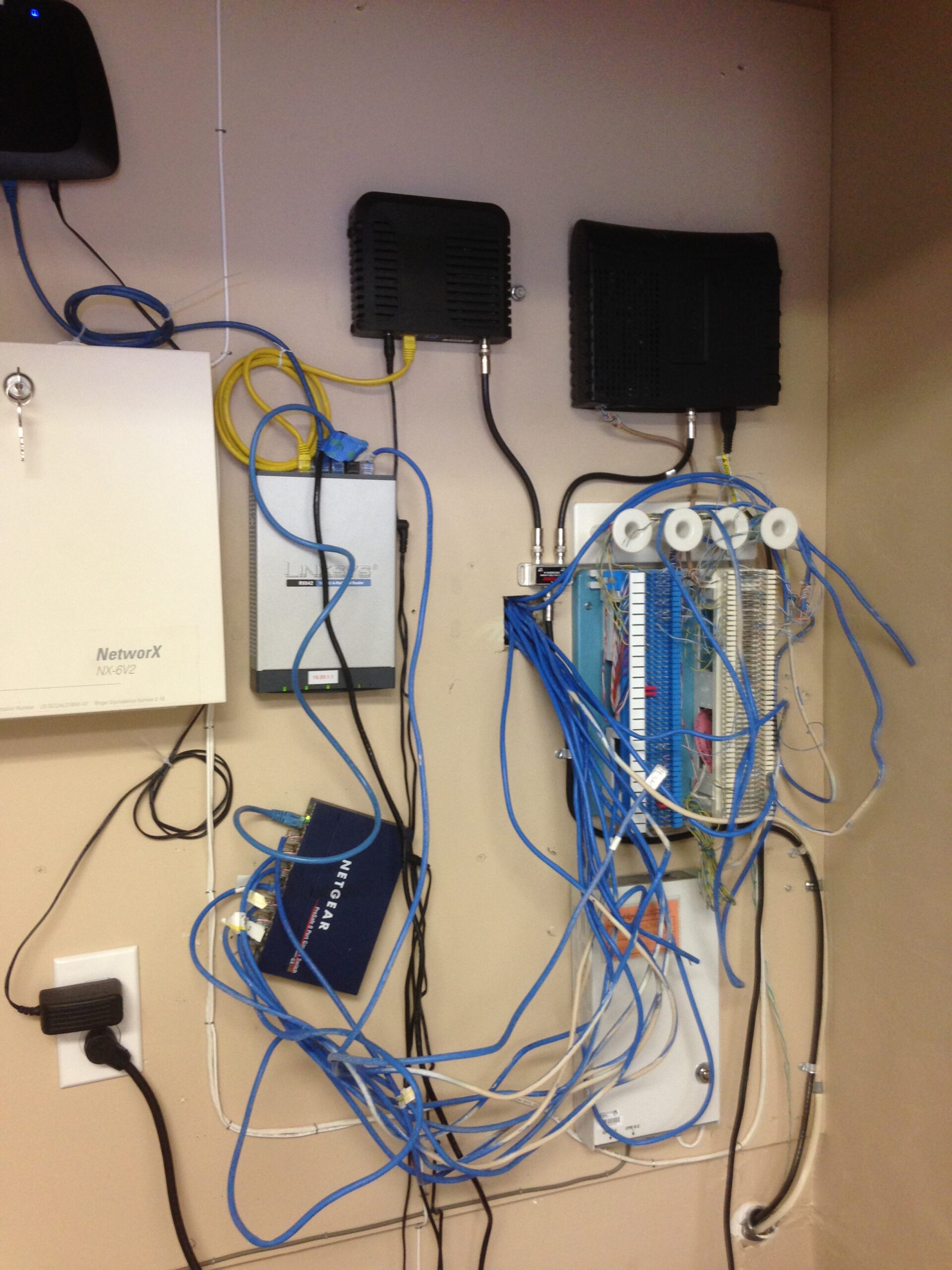

Bellview Church contacted LilyJacks Solutions to resolve a cluttered and unsafe telecom setup. Our team transformed the space with a full low-voltage reorganization that included:

  • Before-and-after cleanup of messy, outdated wiring, restoring clarity and serviceability

  • Installation of a new backboard layout for structured cable management and future expansion

  • Secure mounting of network hardware, surge protection, and demarcation points

  • Tidy, labeled cable runs to reduce troubleshooting time and improve airflow

  • Reinforced connections and professional termination across all data and telecom lines



This project showcases our commitment to clean craftsmanship and restoring structure to even the most disorganized spaces.

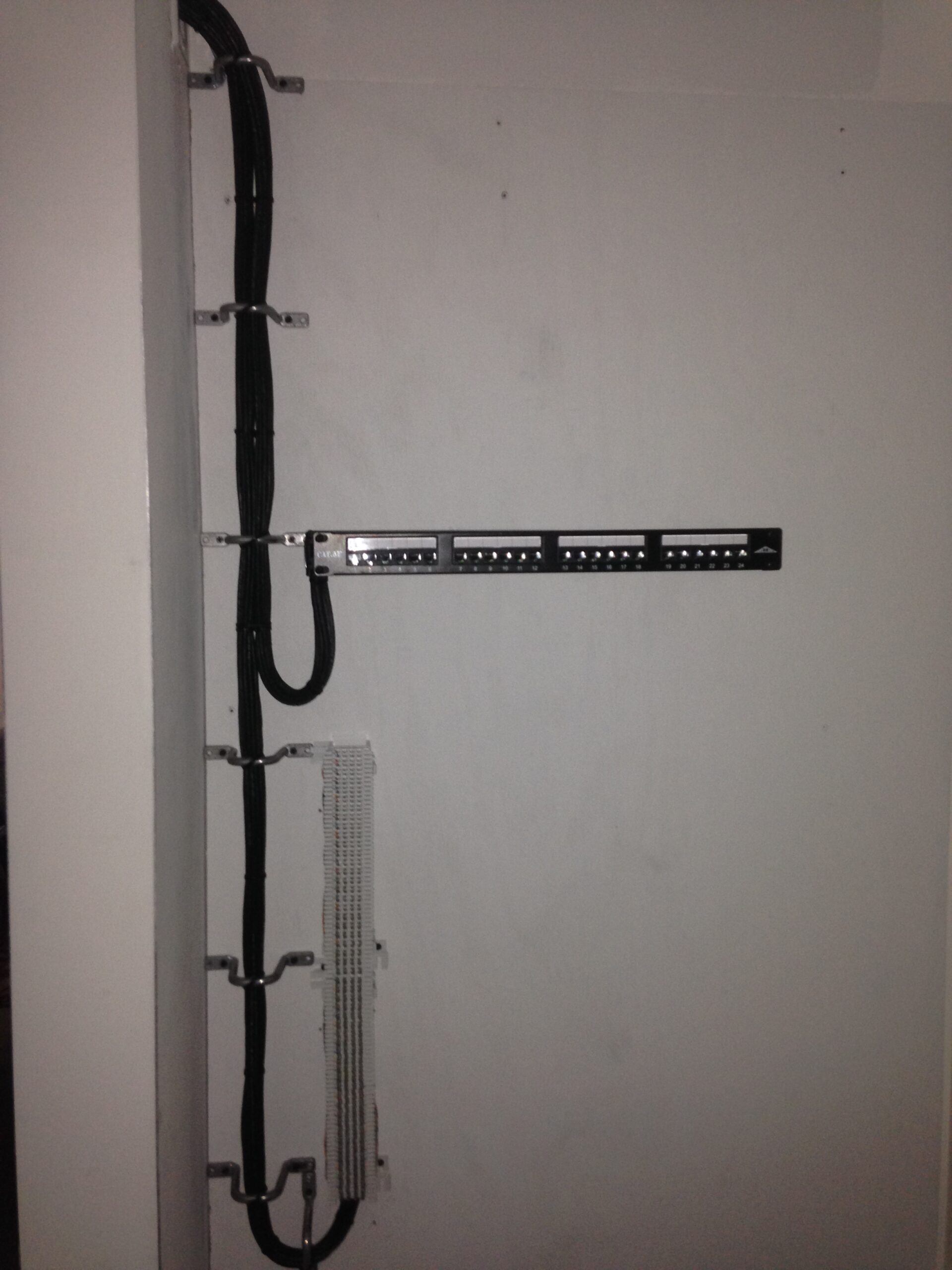

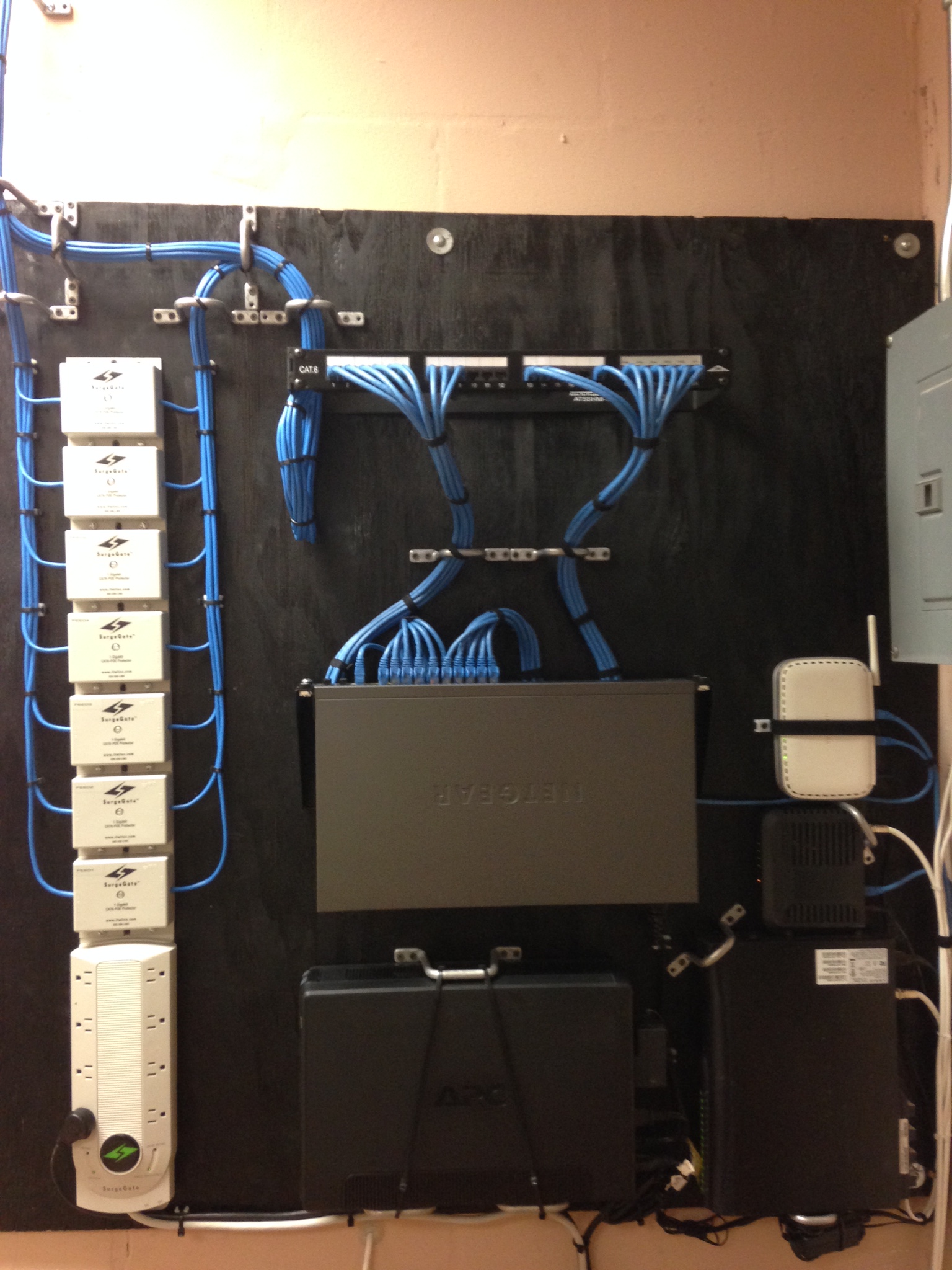

Charter School Project

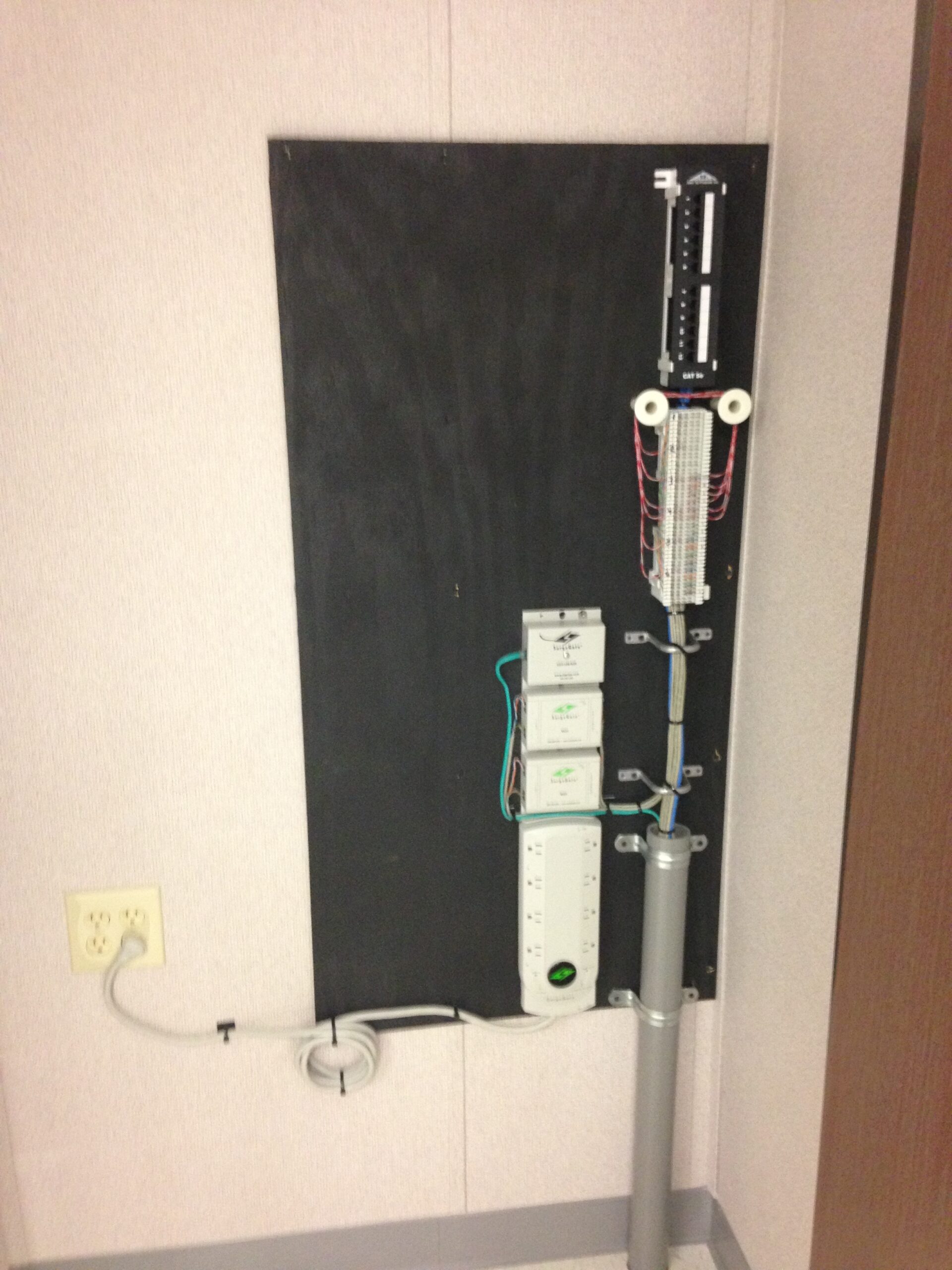

LilyJacks Solutions Solutions Solutions completed a full-scale low-voltage installation for Boulware Springs Charter School, transforming a blank telecom board into a clean, high-performance infrastructure hub. This professional-grade install included:

  • Precision-mounted Cat6 cabling, anchored and routed for efficient airflow and future scalability

  • A fully labeled patch panel and switch setup, ensuring seamless network management

  • Integration of multiple surge-protected power modules to protect all connected equipment

  • Custom rack design for modem, router, firewall, and DVR/NVR units, all neatly mounted

  • Additional shelf installation for dedicated media recording equipment

This project is a showcase of how proper cable management, clean routing, and professional mounting can future-proof a school’s network and ensure dependable connectivity across classrooms.

Brunswick Nissan

LilyJacks Solutions completed a full-scale low-voltage installation for Boulware Springs Charter School, transforming a blank telecom board into a clean, high-performance infrastructure hub. This professional-grade install included:

  • Precision-mounted Cat6 cabling, anchored and routed for efficient airflow and future scalability

  • A fully labeled patch panel and switch setup, ensuring seamless network management

  • Integration of multiple surge-protected power modules to protect all connected equipment

  • Custom rack design for modem, router, firewall, and DVR/NVR units, all neatly mounted

  • Additional shelf installation for dedicated media recording equipment

This project is a showcase of how proper cable management, clean routing, and professional mounting can future-proof a school’s network and ensure dependable connectivity across classrooms.

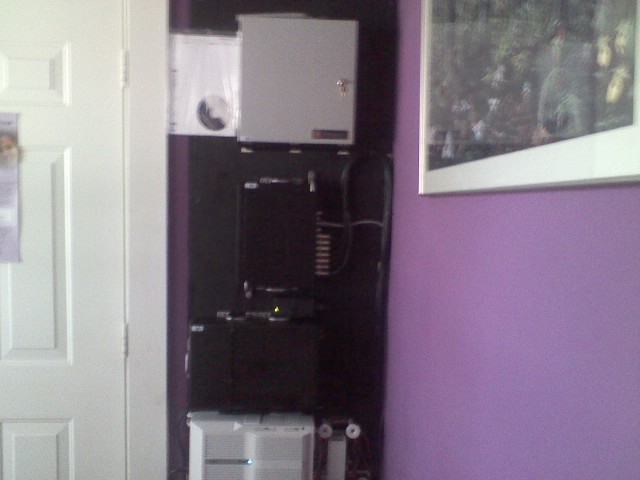

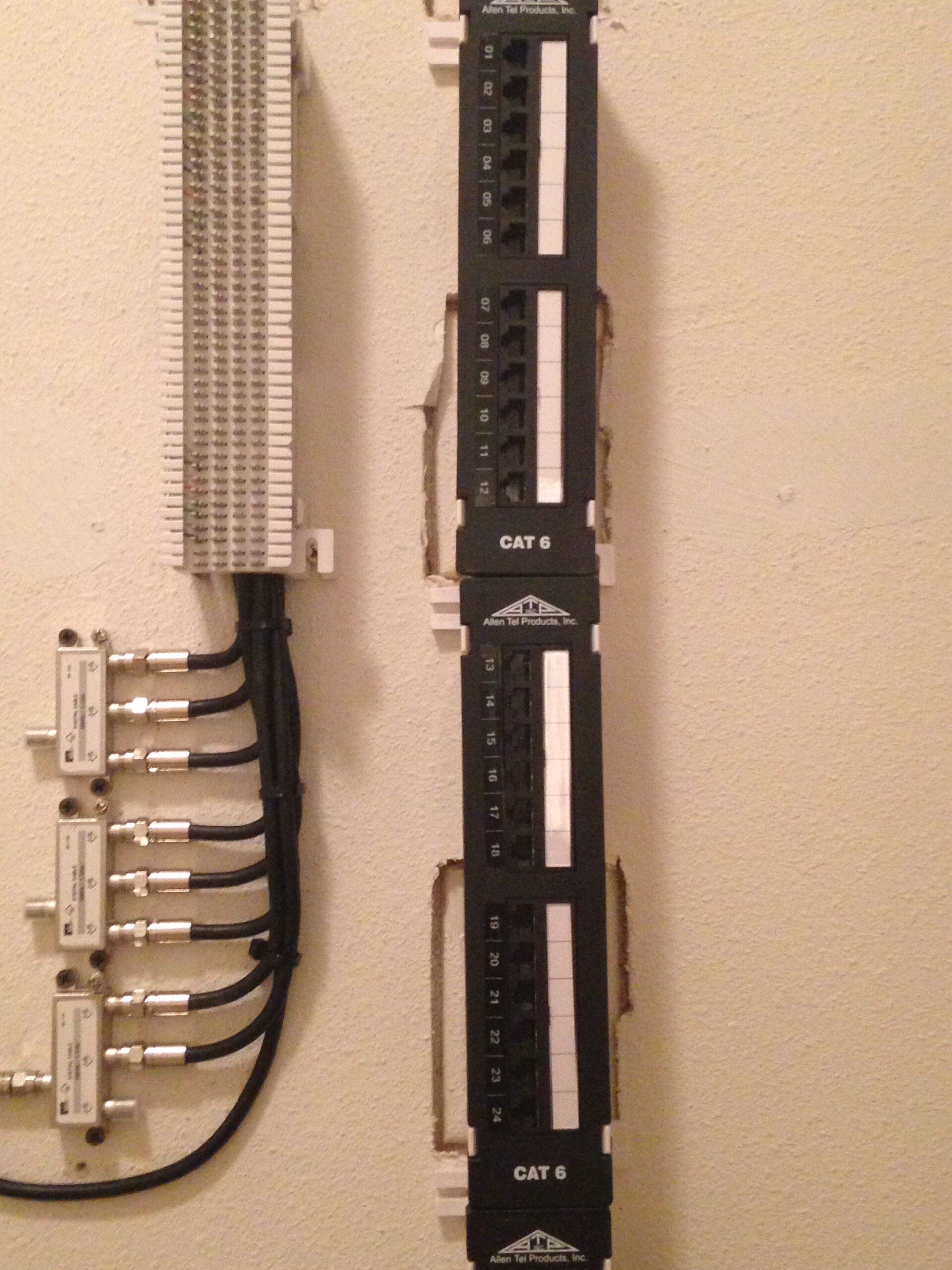

Residential House Project

LilyJacks Solutions was brought in during the construction phase of the Burgos House to install a full low-voltage backbone for voice, data, and coax systems. The project included both rough-in wiring and interior termination work, ensuring the home was future-ready from day one.

Key components of the project:

  • Routed and secured Cat6 cabling through framing and trusses during early construction, avoiding future access limitations

  • Installed a clean structured media panel with dual patch panels for organized data termination

  • Connected and labeled a full coax distribution system, including splitters and grounding

  • Delivered a tidy, accessible finish with attention to port labeling, panel spacing, and wire management

  • Built with both current smart home capabilities and future upgrades in mind

This buildout represents our commitment to doing it right the first time—clean, expandable, and professionally finished for homeowners who expect long-term reliability.

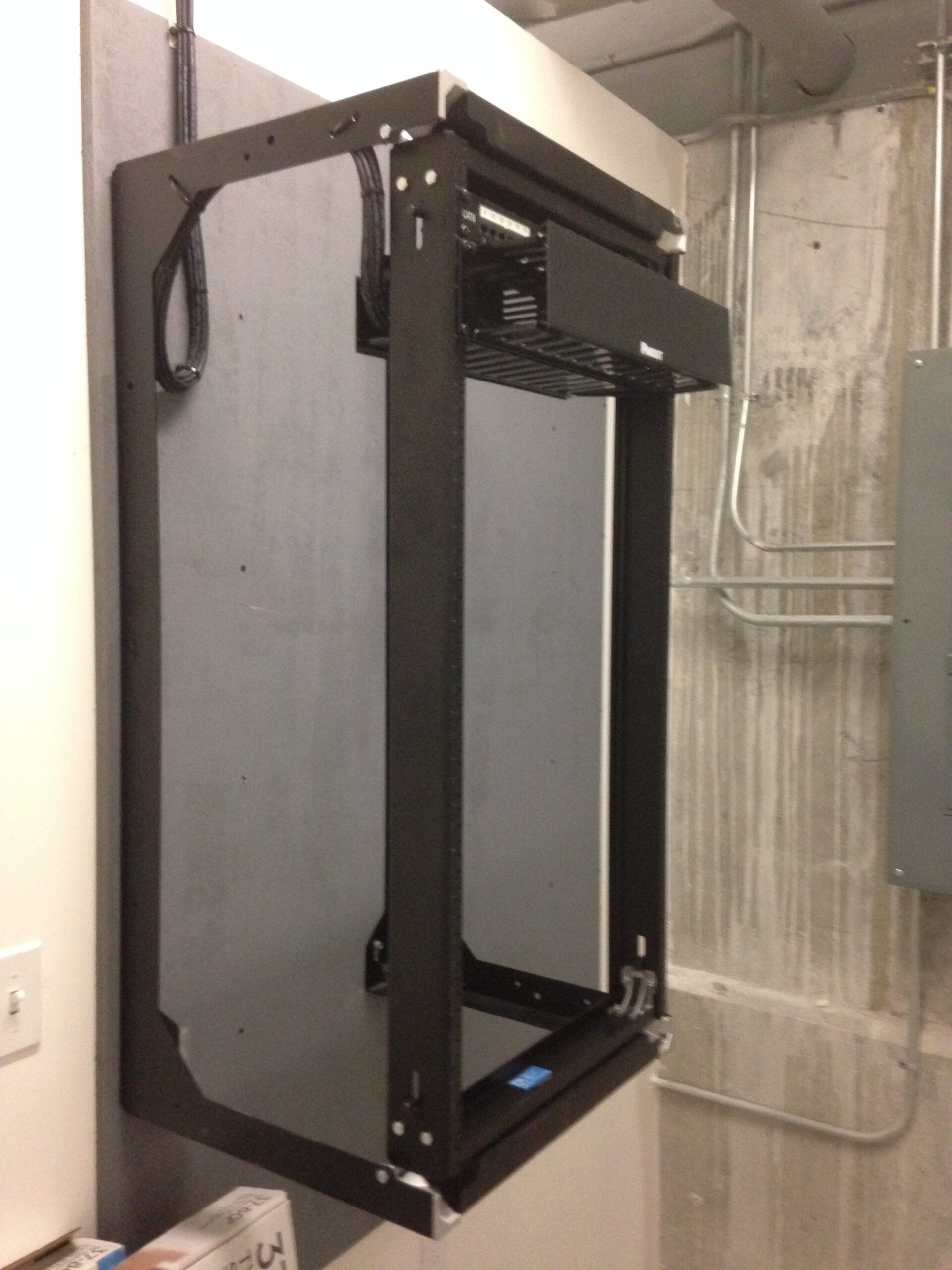

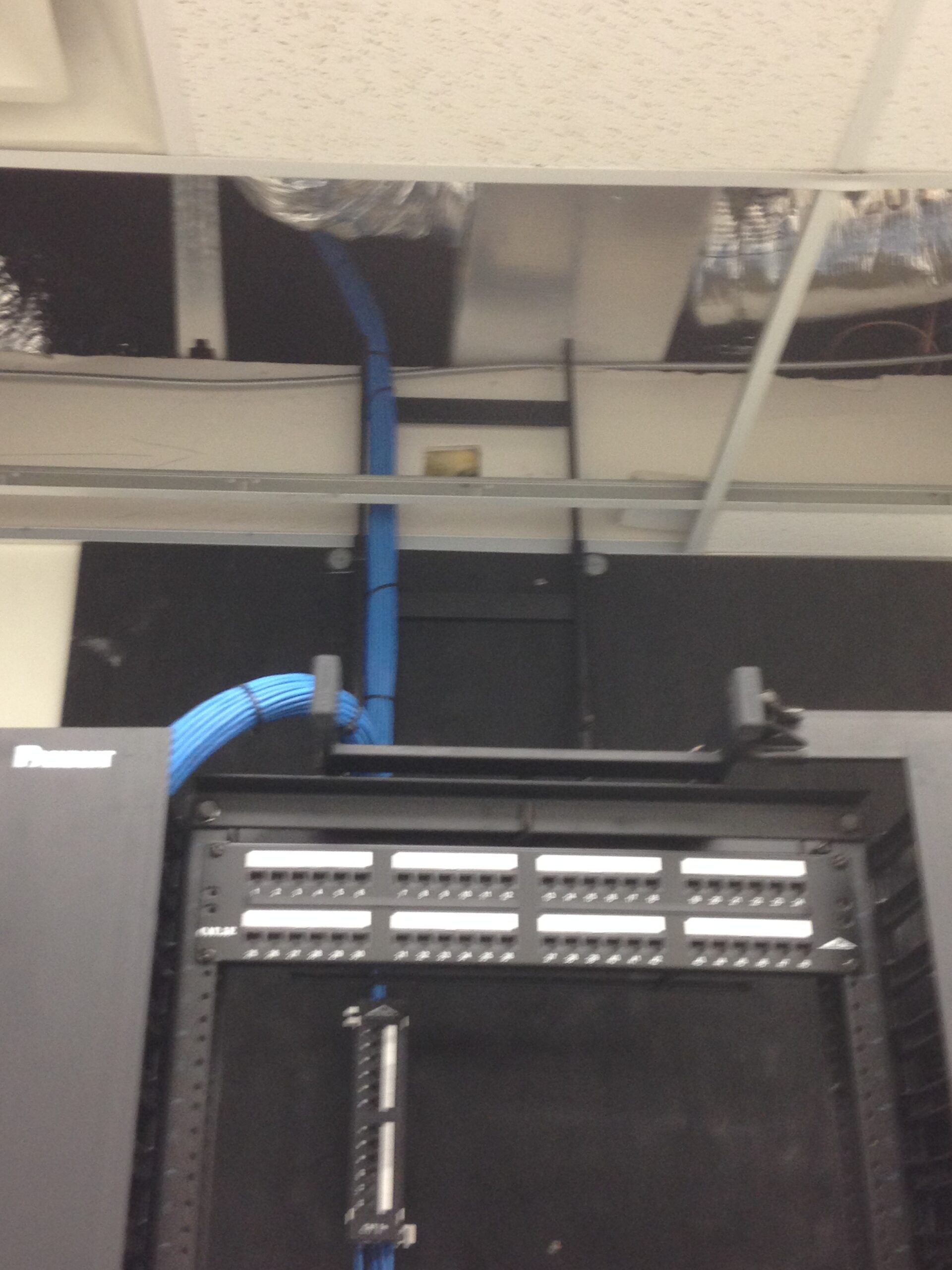

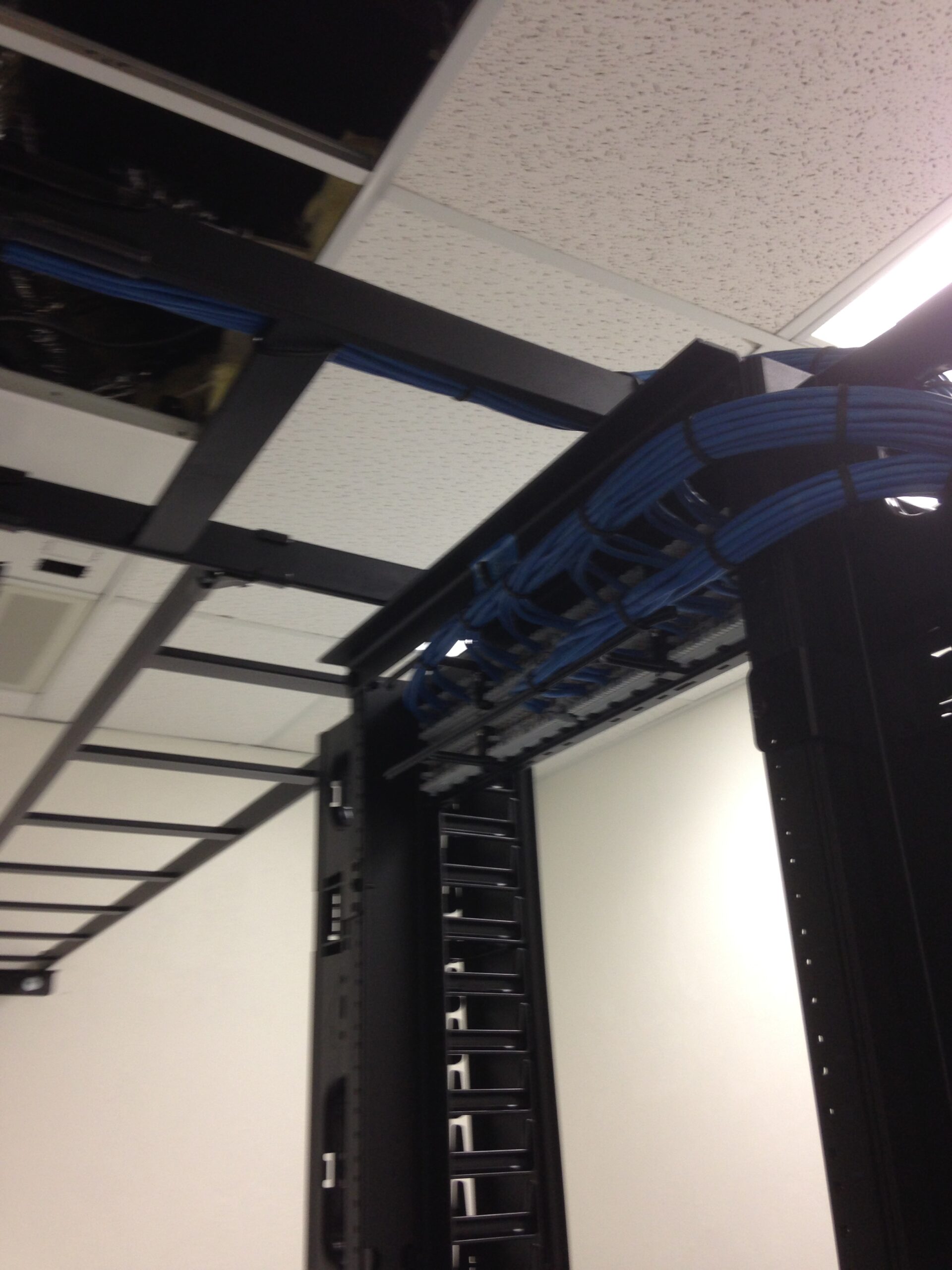

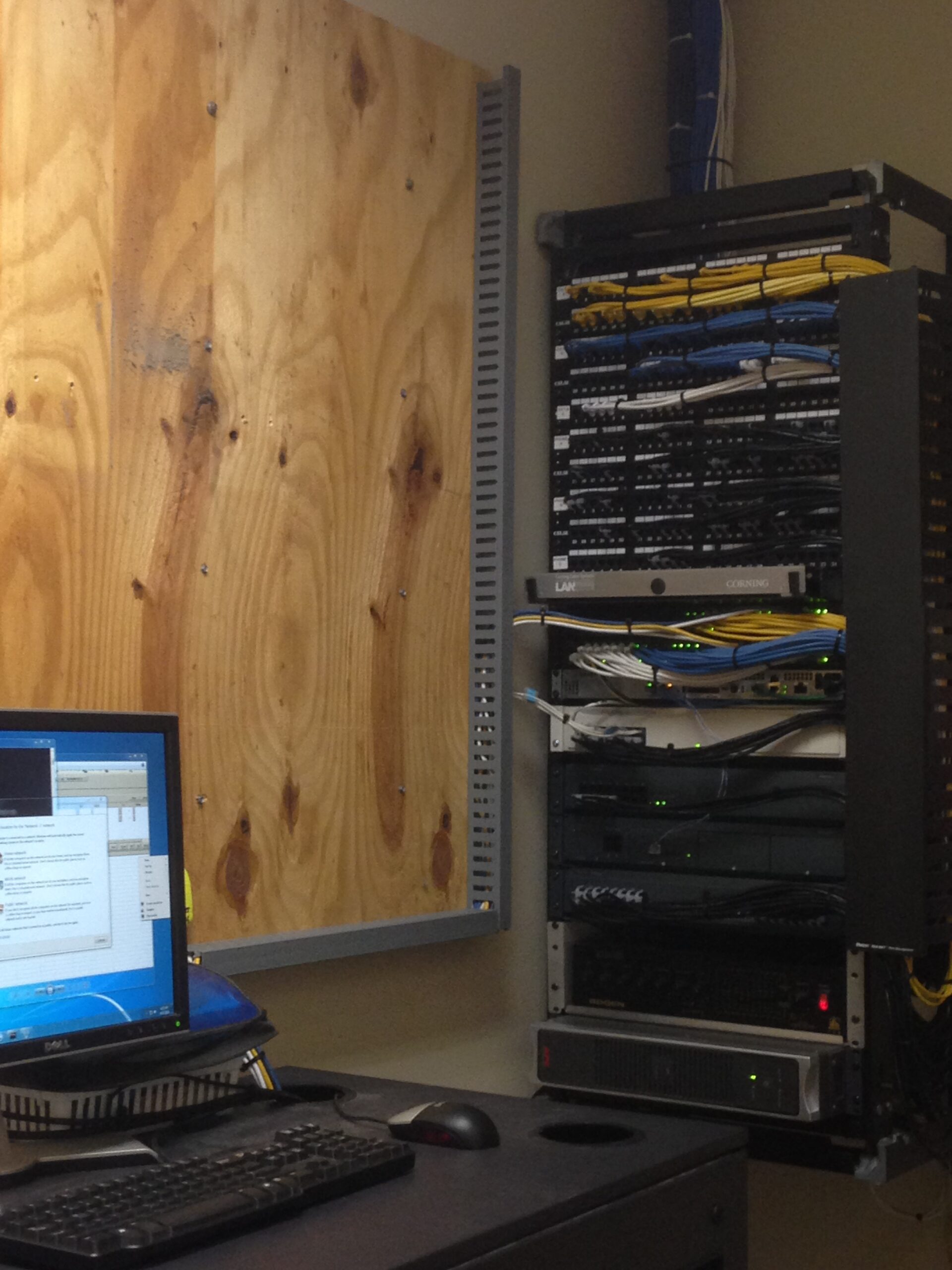

City College Project

For City College, LilyJacks Solutions designed and installed a high-capacity structured cabling and network distribution system to support the institution’s growing IT needs. The project focused on precision, performance, and future-proofing.

Project highlights include:

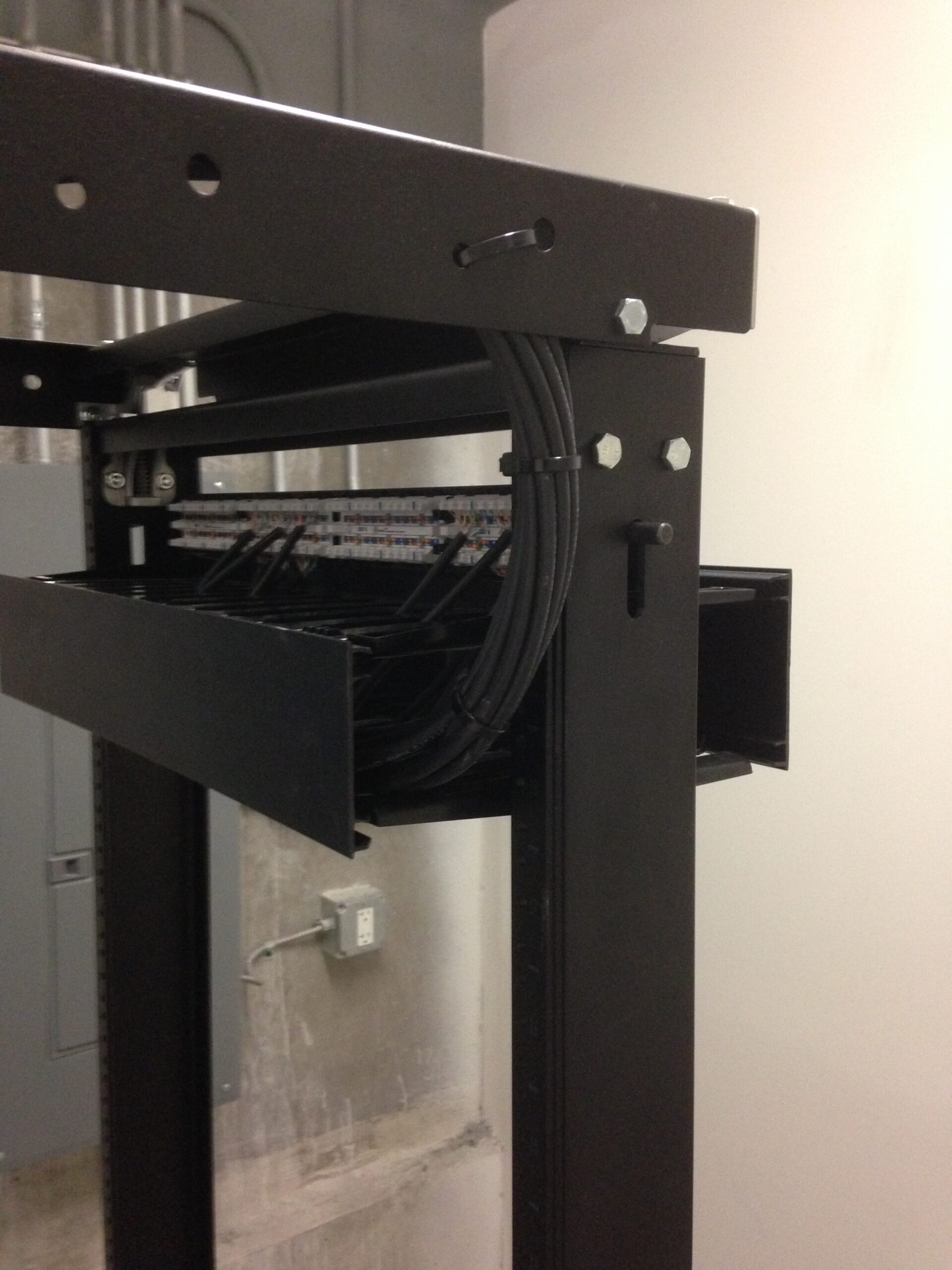

  • Installation of a Panduit-certified network rack, built for efficient routing, separation, and scalability

  • Cleanly bundled Cat6 cable drops, secured with velcro wraps and routed through vertical and horizontal cable managers

  • Dual-tier patch panel configuration to segment data, phones, and internal systems across multiple zones

  • Ladder rack mounted overhead to support ceiling-to-rack cable trays, reducing stress on termination points

  • Black backboard finish and full labeling for a professional, easy-to-maintain infrastructure

  • All work completed in a live environment without interrupting college operations

This install reflects LilyJacks Solutions’s ability to handle complex commercial jobs with clean craftsmanship, robust planning, and attention to future network demands.

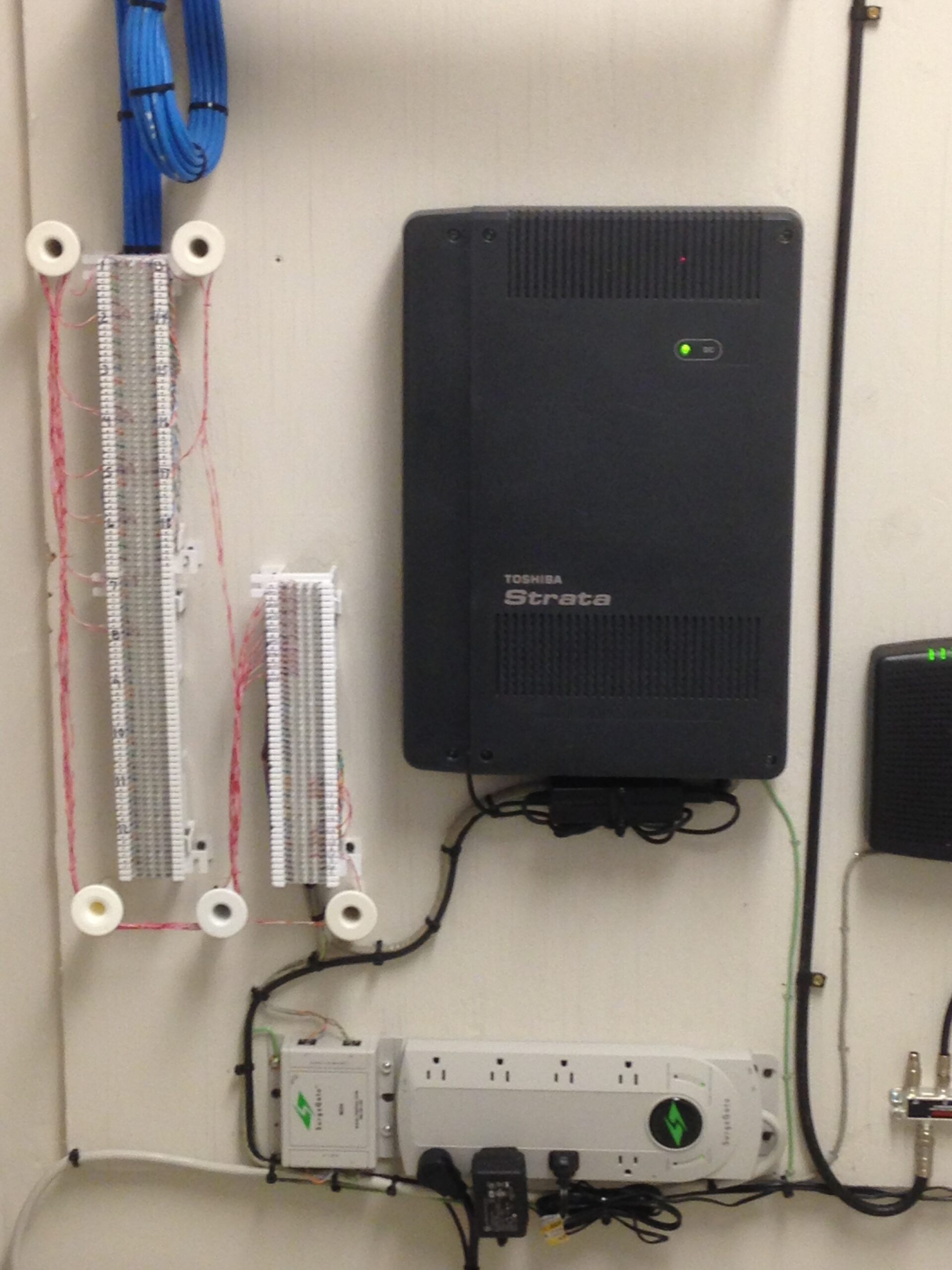

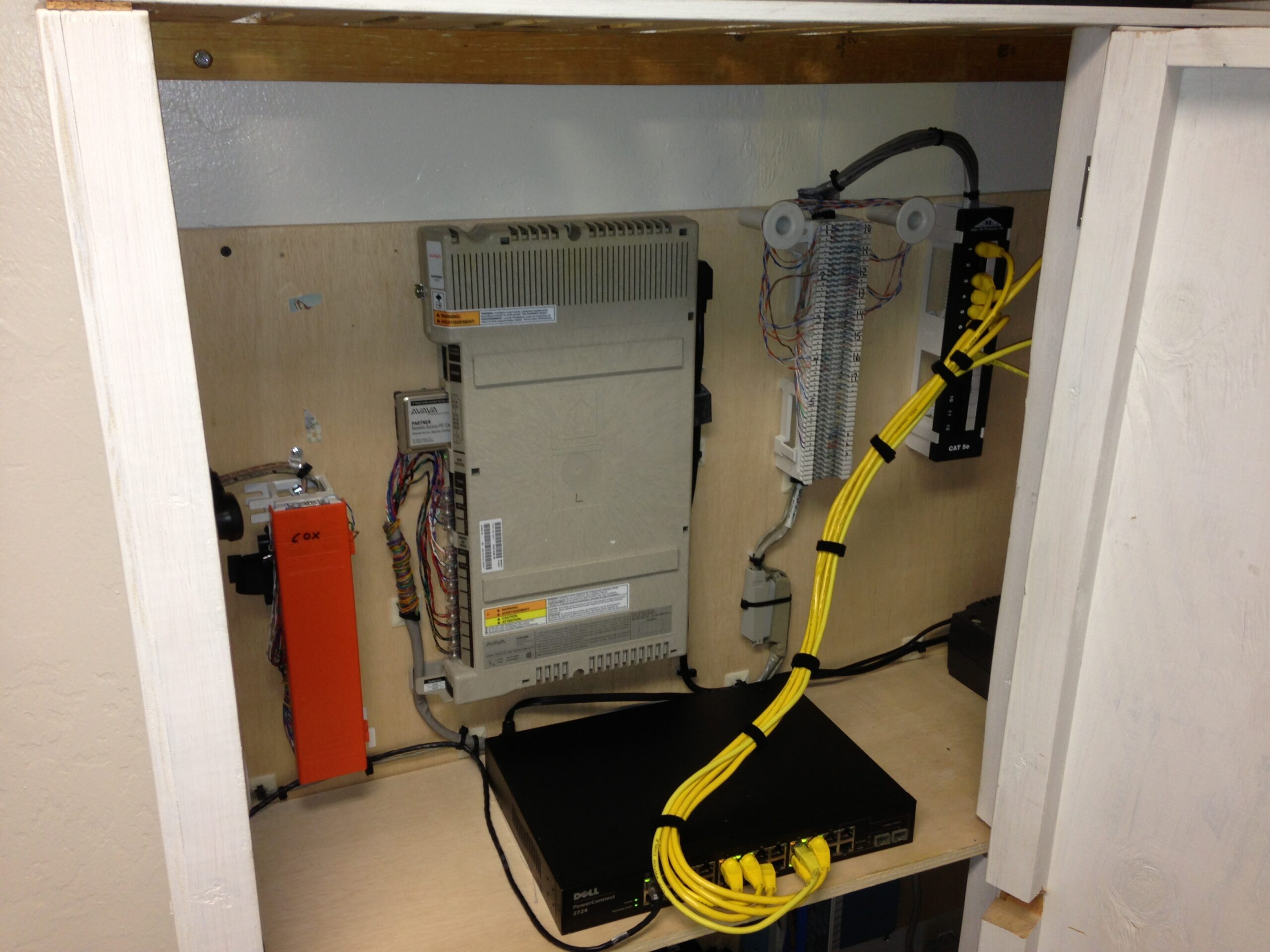

Home Health Project

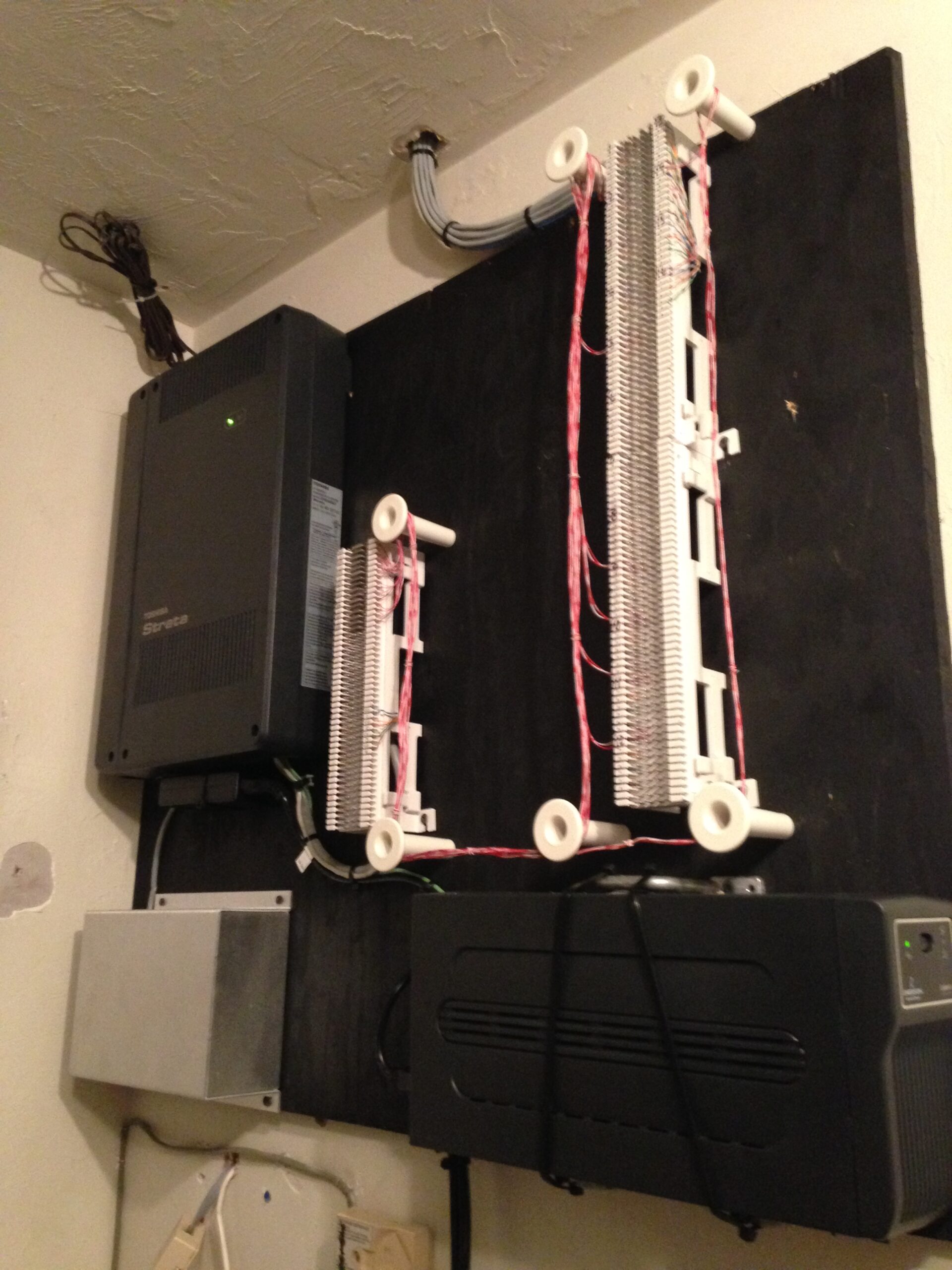

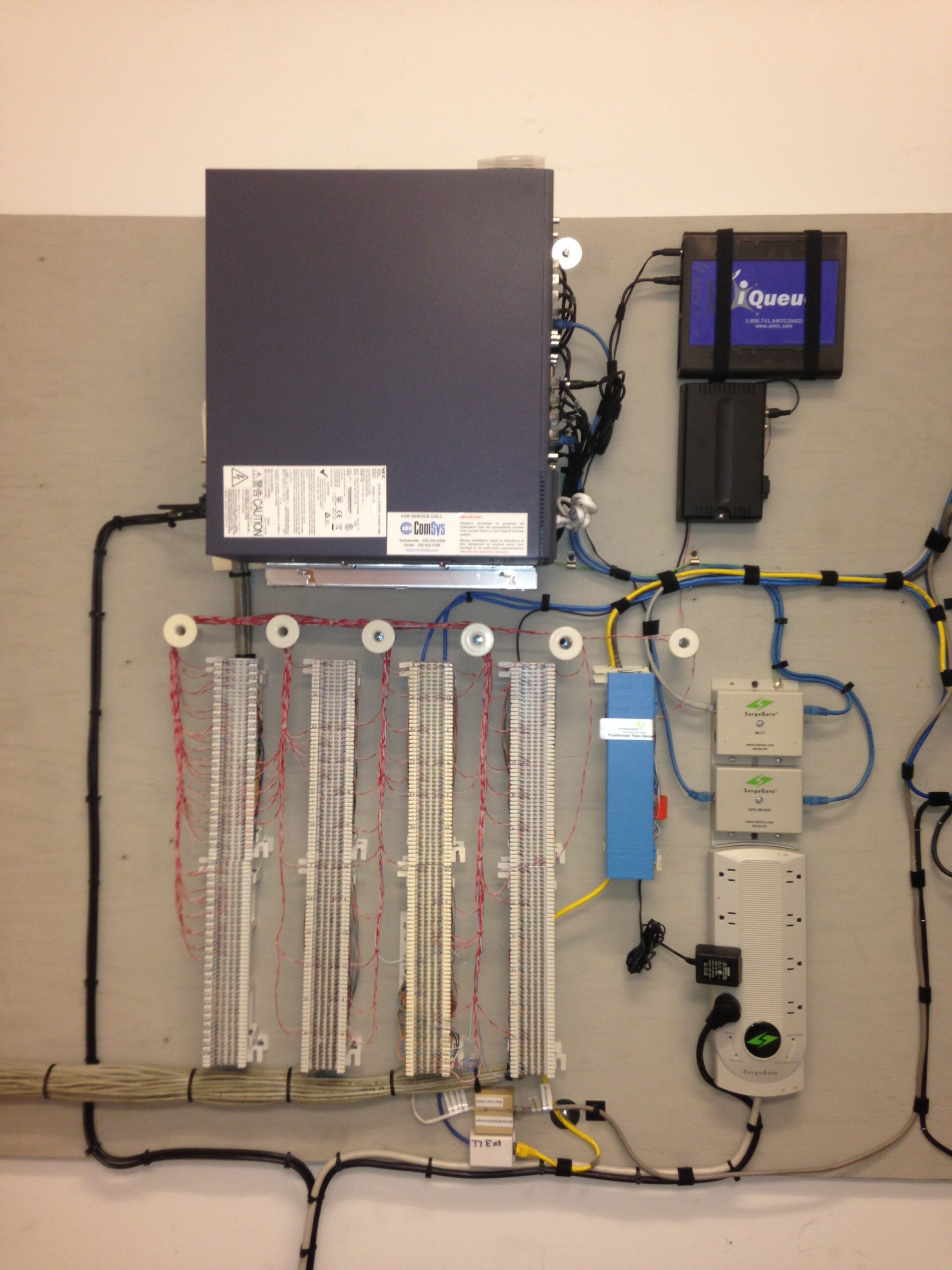

LilyJacks Solutions was brought in to resolve a disorganized and outdated low-voltage setup at a home healthcare facility. The result was a complete transformation of the telecom room into a clean, code-compliant, and service-friendly hub.

Scope of Work:

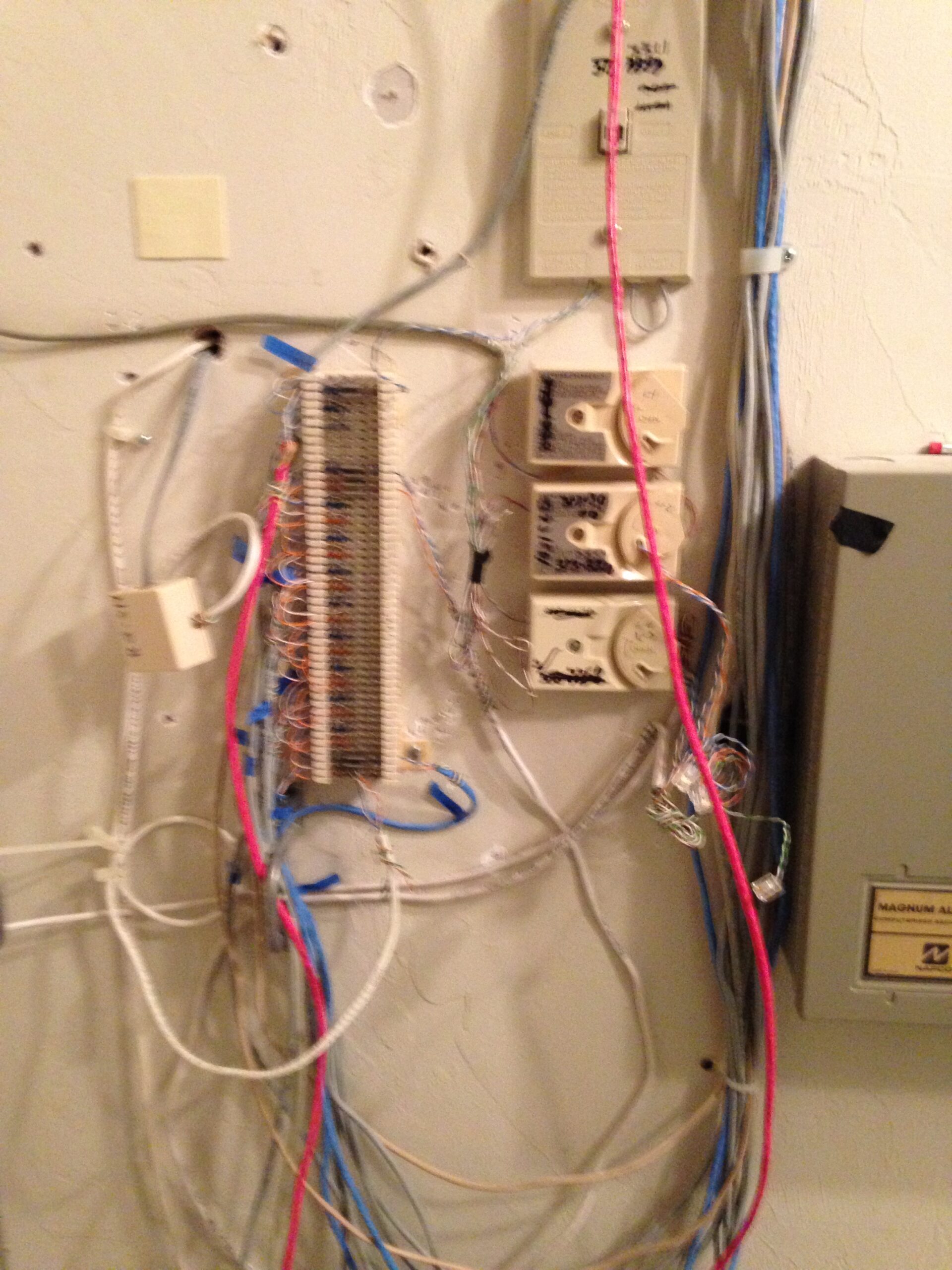

  • Before: Legacy wiring and voice terminals were tangled, unlabeled, and unsafe for ongoing service or expansion

  • Installed a custom backboard to organize all terminations, power, and telecom gear

  • Replaced disorganized terminations with new 66 blocks, cleanly wired and labeled

  • Mounted a UPS system, surge protection, and new PBX hardware for reliable power and communication continuity

  • Bundled and secured all cabling using industry-standard slack management and routing practices

  • Delivered a final product that is not only functional but aesthetically clean and easy to maintain

This project showcases LilyJacks Solutions’s ability to convert telecom chaos into dependable infrastructure — perfect for a healthcare environment where downtime is not an option.

Lake City Cancer Center Project

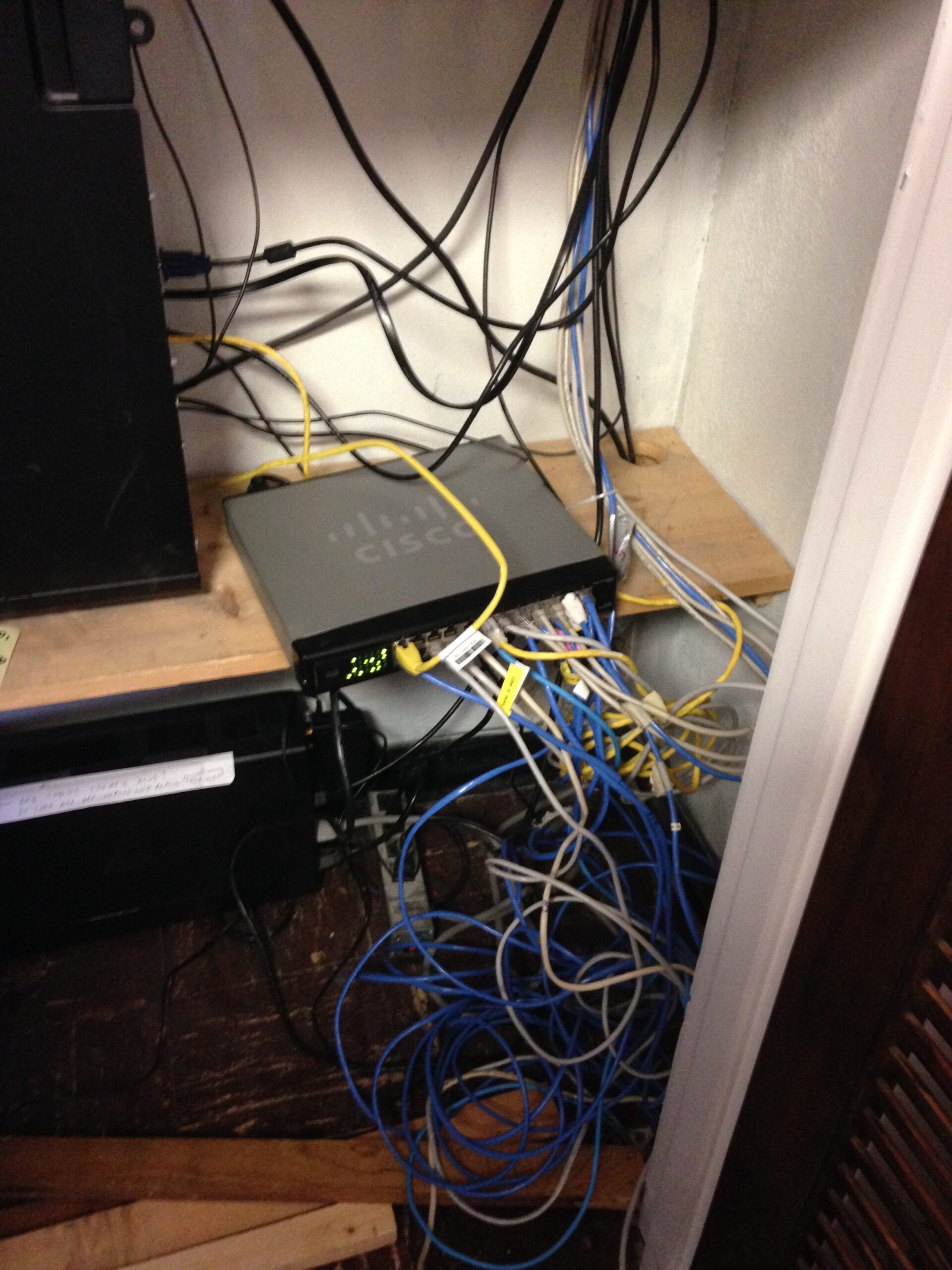

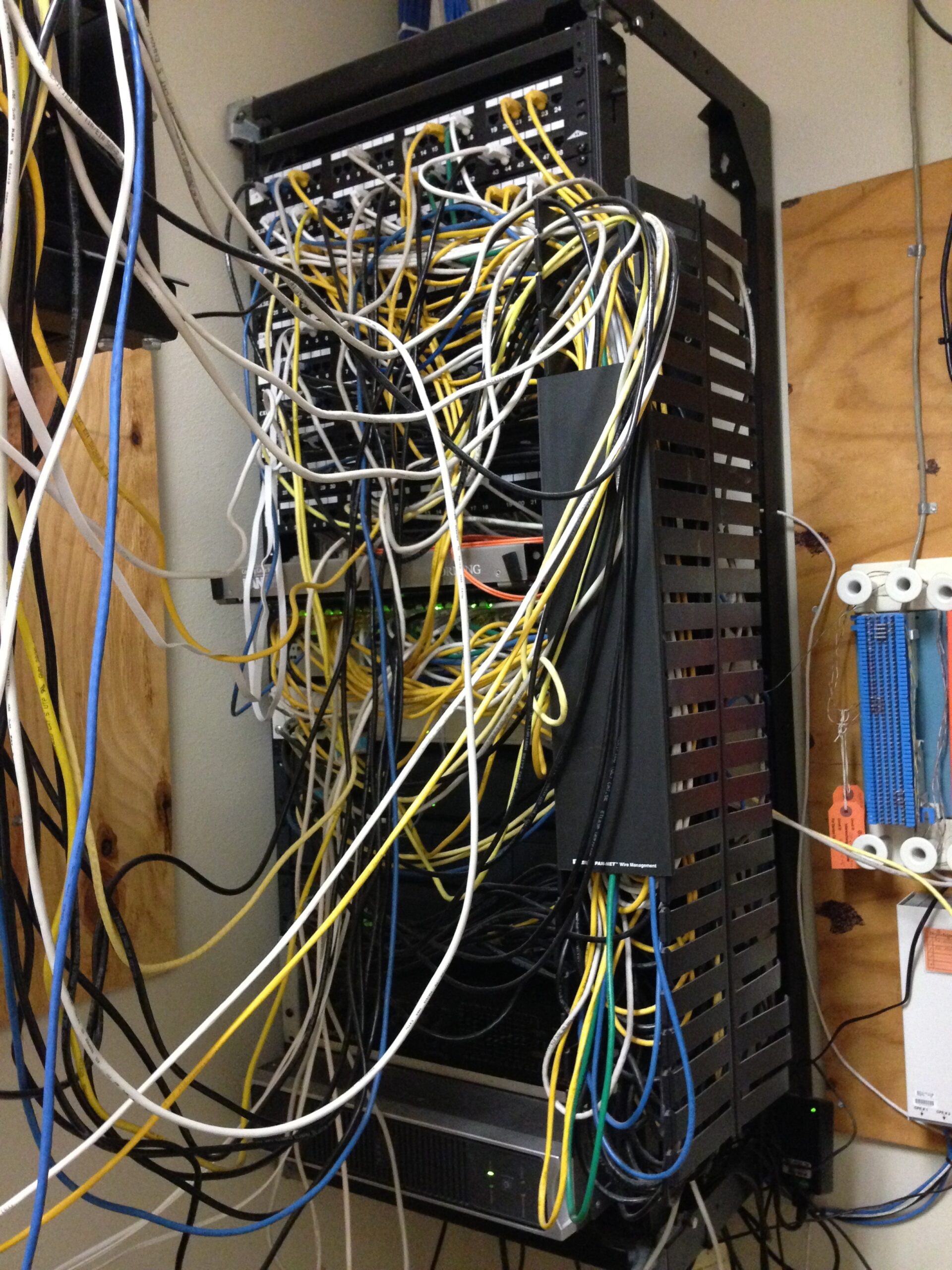

This project involved a complete reorganization of a heavily overrun telecom rack. Initially, the network cabinet was congested with an unmanageable tangle of data, voice, and fiber connections. We identified, traced, and labeled all connections, removing unused cables and optimizing the cable paths for airflow and accessibility.

Key upgrades and deliverables:

  • Organized and separated voice, data, and fiber lines.

  • Re-terminated patch panel connections for optimal alignment.

  • Labeled ports and cable groups by function (CAT5E data, phone, WAN).

  • Implemented better rack management for cooling efficiency.

  • Installed rack-mounted power, firewall, and fiber termination units.

The result is a high-performing, cleanly organized telecom room that supports the facility’s critical communication infrastructure with greater stability and ease of maintenance.

Small Projects
